F1A · F1B · F1H · P-30 · Hand-launch gliders

Design your next free-flight wing.

Free browser tools for balsa aircraft builders — from airfoil selection to laser-ready ribs. Nothing to install and no sign-up needed — your designs stay on your computer unless you save them to a free account.

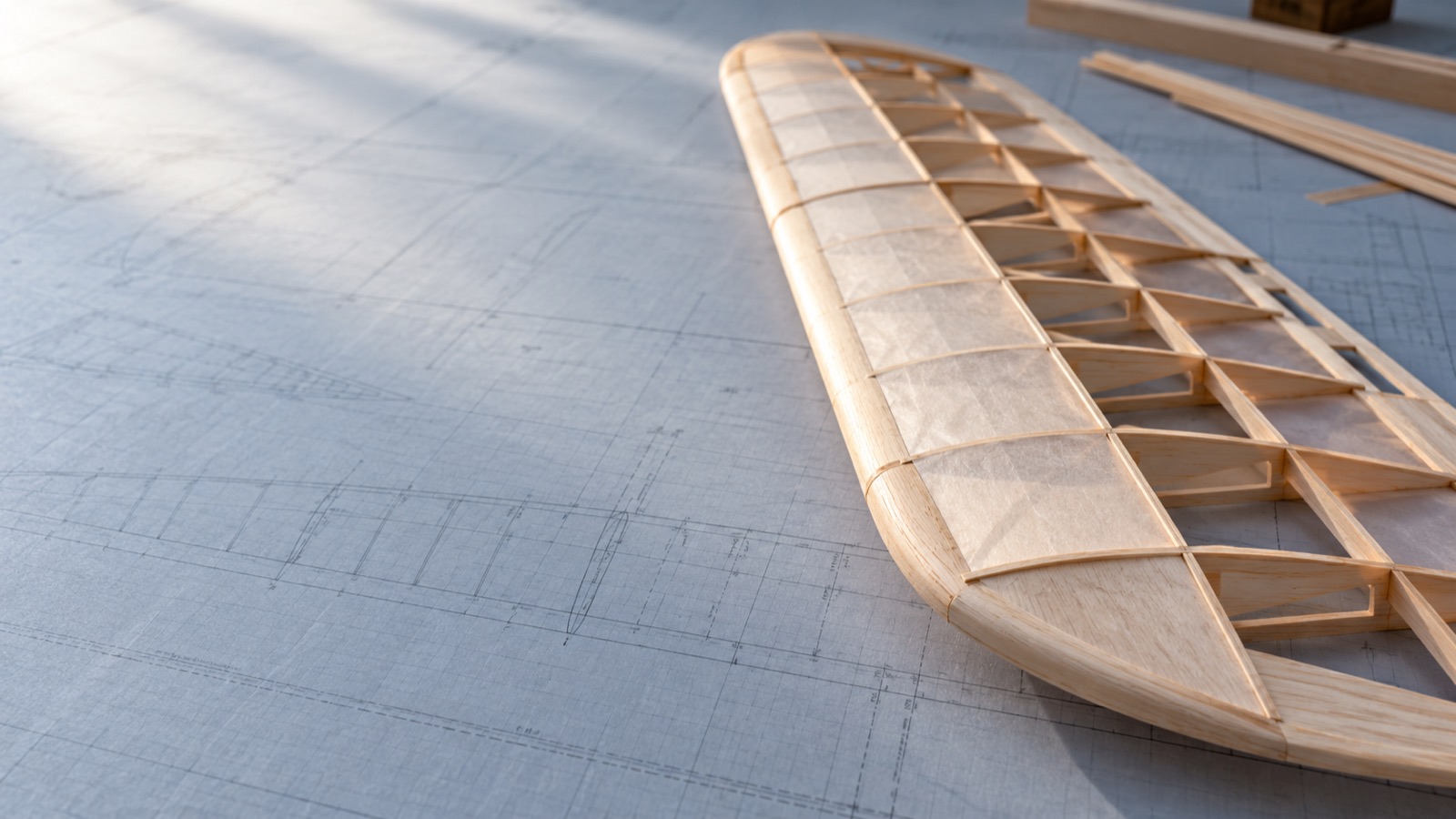

Balsa free-flight wing structure with tissue covering on a drafting table

Tools

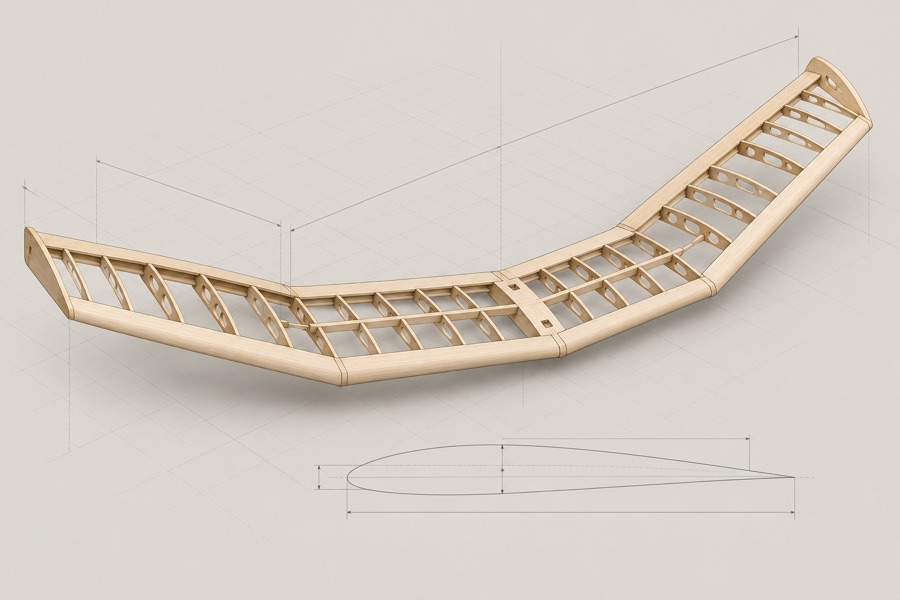

Isometric drawing of a polyhedral balsa wing
Live · v0.1

FF Wing Designer

Build a polyhedral wing from 1650+ airfoils, inspect its structure in 3D, nest ribs on balsa sheets, export DXF, estimate weight, lift, drag and sink.

Launch designer →
Balsa tailplane and fin structure
Live · v0.1

Tail Designer

Stabilisers and fins with the Wing Designer engine: ribs, spars, tip shapes, nesting and DXF — and send the stab to Stability & Trim.

Design a tail →
Stick-built balsa box fuselage with a former and nose block
New · v0.1

Fuselage Designer

Stick box, sheet balsa box or pod and tail boom: shape it from a few stations, see it in 3D with the wing and tail, print the 1:1 plan, nest formers on balsa, cut list, weight and CG.

Design a fuselage →

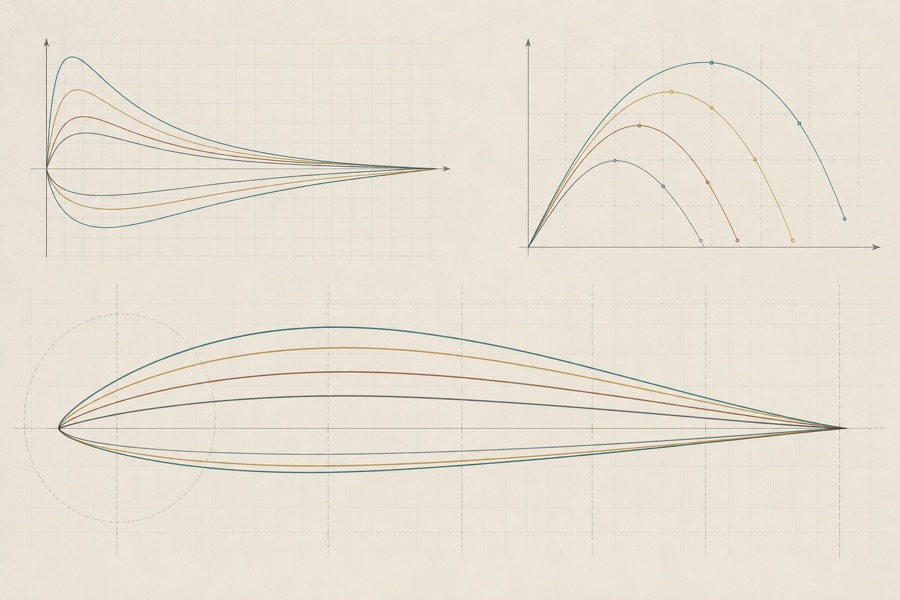

Overlaid airfoil outlines with pressure and polar curves
Live · v0.2

Foil Database

Search 1650+ airfoils, overlay up to eight, compare polars and pressure at free-flight Reynolds numbers, download .dat, DXF or SVG — or draw your own section over a photo of an old plan.

Open database →
Side view of a glider with balance point and lift arrows
Live · v0.1

Stability & Trim

Neutral point, CG for your static margin, decalage for the glide, tail volumes and spiral stability — import the wing from Wing Designer.

Check your layout →
Flight path of a glider from launch to glide
Live · v0.1

Glide Simulator

Fly your layout in 2D: launch, transition and glide. Move CG and decalage and watch steady glide, phugoid, stall or dive.

Fly it →
Rubber motor test rig with a torque meter and a torque curve
Live · v0.1

Rubber Motor Calculator

Max turns, torque and energy for P-30, Coupe and Wakefield motors; compare strand counts and log your rubber batches.

Size a motor →
Balsa propeller blade with pitch block
Live · v0.1

Propeller Designer

Blade outline and pitch for rubber and F1B props: rpm, thrust and efficiency for your motor torque, with blade, blank and pitch-block templates.

Design a prop →
Balsa sheets on a kitchen scale with cut ribs
Live · v0.1

Balsa Selector

Weigh a sheet to get its density and grade, see which parts it suits, and keep a list of your balsa stock.

Grade your balsa →
Model plan assembled from overlapping printed pages
Live · v0.1

Plan Tiler

Print large SVG, PDF or scanned plans 1:1 or scaled on A4/A3 with overlap and alignment marks.

Print a plan →
Flying field with a glider in a thermal and a drift path
Live · v0.1

Field Assistant

Wind and thermal forecast for your field, drift and DT timing on a map, retrieval bearing — installs on the phone and works offline.

Go flying →
Notebook with flight times and a stopwatch
Live · v0.1

Flight & Trim Log

Time and log every flight with weather and trim settings, and see which trim really works.

Open the log →
01DesignAirfoil, wing and tail, stability and trim, motor and prop — each tool feeds the next.
02BuildGrade your balsa, nest ribs for the laser cutter, print 1:1 plans on A4.
03FlyField forecast, drift and DT, a stopwatch log and a simulator to understand the trim.
